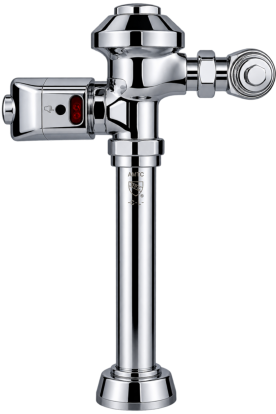

HSM-801-CT-12(1.28 gpf/4.8 Lpf) HYBRIDFLUSH® SIDE MOUNT AUTOMATIC WATER CLOSET FLUSHOMETER
DESCRIPTIONBattery Powered, Sensor Operated HYBRIDFLUSH® Side MountExposed Water Closet (Toilet) Flushometer for Floor Mounted or Wall Hung Top Spud Bowls
FLUSH CYCLEModel HSM-801-CT-12 (1.28 gpf/4.8 Lpf) High Efficiency
FEATURES- Patented Gear Motor Drive- Hands Free Infrared Sensor Activation- Vandal and Water Resistant Design- Chrome Plated Metal Housing- Quiet Operation- Electronic Manual Flush Button (Front)- True Mechanical Manual Flush Button (Side) *Mechanical Button Works When Batteries are Drained- Operates on (4) “C” Alkaline Batteries (Included)- Battery Life - 3+ Years- “Low Battery” Blinking LED Indicator - Easy Battery Replacement-No Water Shut Off Necessary- HARDWIRED VERSION AVAILABLE (HW)- Adjustable Sensor Distance- Optional Three (3) Second Flush Delay Mode- Optional 24-Hour Flush Mode- Uses Proprietary Silicone Diaphragm with Filtered Bypass- 1” I.P.S. Angle Stop- Adjustable Tailpiece- High Back Pressure Vacuum Breaker with Single Piece Hex Coupling Nut- Spud Coupling and Flange for 1 ½” Top Spud - Sweat Solder Kit and Wall Flange with Set Screw- High Efficiency For Water Conservation
The HYBRIDFLUSH® is a revolutionary full-featured automatic/manualflushometer. The HYBRIDFLUSH® incorporates a unique patentedmechanism that allows for automatic/manual operation for unsurpassedreliability. The patented HYBRIDFLUSH® design allows for a pushbutton to be used as an alternate flush option that is independent of thebattery power. The HYBRIDFLUSH® by Advanced Modern TechnologiesCorporation is the most efficient, economical, and complete automaticflush valve system on the market.
