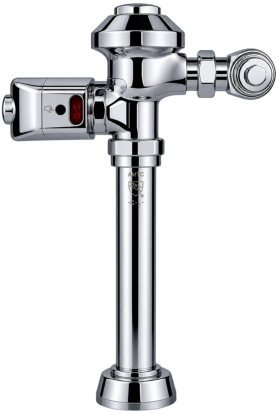

HSM-801-CT-11 (1.1 gpf/4.2 Lpf) HYBRIDFLUSH ® SIDE MOUNT AUTOMATIC WATER CLOSET FLUSHOMETER

DESCRIPTION Battery Powered, Sensor Operated HYBRIDFLUSH ® Side Mount Exposed Water Closet (Toilet) Flushometer for Floor Mounted or Wall Hung Top Spud Bowls

FLUSH CYCLE Model HSM-801-CT-11 (1.1 gpf/4.2 Lpf) High Efficiency

FEATURES - Patented Gear Motor Drive - Hands Free Infrared Sensor Activation - Vandal and Water Resistant Design - Chrome Plated Metal Housing - Quiet Operation - Electronic Manual Flush Button (Front) - True Mechanical Manual Flush Button (Side) *Mechanical Button Works When Batteries are Drained - Operates on (4) “C” Alkaline Batteries (Included) - Battery Life - 3+ Years - “Low Battery” Blinking LED Indicator - Easy Battery Replacement-No Water Shut Off Necessary - HARDWIRED VERSION AVAILABLE (HW) - Adjustable Sensor Distance - Optional Three (3) Second Flush Delay Mode - Optional 24-Hour Flush Mode - Uses Proprietary Silicone Diaphragm with Filtered Bypass - 1” I.P.S. Angle Stop - Adjustable Tailpiece - High Back Pressure Vacuum Breaker with Single Piece Hex Coupling Nut - Spud Coupling and Flange for 1 ½” Top Spud - Sweat Solder Kit and Wall Flange with Set Screw - High Efficiency For Water Conservation

CODE COMPLIANCE (LISTED BY IAPMO) - ASSE 1037-2015 - ASME A112.1035-2015 - CSA B125.37-15

HSM-801-CT-11 1.1 gpf Side Mount Automatic Flush Valve

The HYBRIDFLUSH ® is a revolutionary full-featured automatic/manual flushometer. The HYBRIDFLUSH ® incorporates a unique patented mechanism that allows for automatic/manual operation for unsurpassed reliability. The patented HYBRIDFLUSH ® design allows for a push button to be used as an alternate flush option that is independent of the battery power. The HYBRIDFLUSH ® by Advanced Modern Technologies Corporation is the most efficient, economical, and complete automatic flush valve system on the market.

The HYBRIDFLUSH ® Advantage

TECHNICAL DOWNLOADS

Specifications - HSM-801-CT-11 - HSM-801HW-CT-11 - AMTCTRANS6VDC

Manuals - HSM-801 Installation & Operation - HSM-801HW Installation - HSM-801 Troubleshooting - HSM-801 Parts Diagram - MF-700 Installation & Operation - MF-700 Troubleshooting - MF-700 Parts Diagram
