MF1012AT16

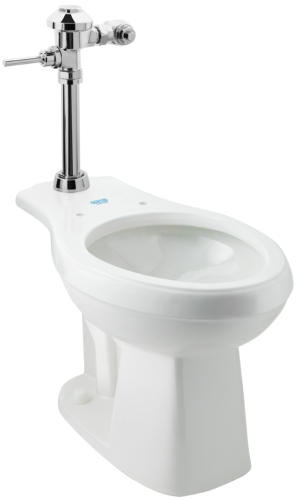

(1.6 gpf/6.0 Lpf) ADA FLOOR MOUNT LC MANUAL FLUSH VALVE SYSTEM
DESCRIPTION
Complete LC System with Exposed Manual Water
Closet Flushometer and ADA Vitreous China Fixture.
FLUSH CYCLE
Model MF1012AT16 (1.6 gpf/6.0 Lpf) Low Consumption
FLUSHOMETER SPECIFICATION (MF-700-T16)
- Quiet Operation
- Uses Proprietary Silicone Diaphragm with Filtered Bypass
- ADA Compliant Non-Hold Open Sealed Brass Handle
- 1” I.P.S. Angle Stop
- Adjustable Tailpiece
- High Back Pressure Vacuum Breaker with Single Piece
Hex Coupling Nut
- Spud Coupling and Flange for 1 ½” Top Spud
- Sweat Solder Kit and Wall Flange with Set Screw
- No External Water Volume Adjustment
- Low Consumption For Water Conservation
CODE COMPLIANCE (LISTED BY IAPMO)
- ASSE 1037-2015
- ASME A112.1035-2015
- CSA B125.37-15
W
a
rra
nty
5 Years
L
iste
d
By
I
APM
O
TECHNICAL DOWNLOADS
Specifications
- MF1012AT16
FIXTURE SPECIFICATION (AUT-1012A)
- Complies with ADA Accessible Standards
- White Color
- Vitreous China
- Floor Mount Water Closet Bowl
- Elongated Rim
- 10” (254mm) Rough-In
- 1-1/2” (38mm) I.P.S. Top Spud Inlet
- 2” (50mm) Fully Glazed Trapway
- 11” (279mm) x 13” (330mm) Water Surface Area
- Direct Feed Jet
- 100% Factory Tested
- Toilet Seat Not Included
CODE COMPLIANCE (LISTED BY ICC-ES)
- ASME A112.19.2-2013
- CSA B45.1-13
PLUMBING SYSTEM REQUIREMENTS
- Minimum Flowing Pressure: 25 PSI
- Maximum Static Pressure: 80 PSI
- Minimum Flow Rate: 25 GPM
A
D
A
C
om
plia
nt
