AMTC - HSM-801-RAJ Automatic Janitor Side Mount Timer Retrofit for Urinals

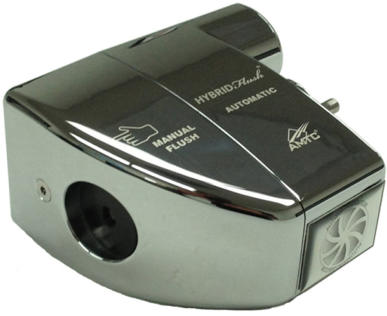

HSM-801-RAJ SIDE MOUNT AUTOMATIC JANITOR FOR URINALS

DESCRIPTION Battery Powered, Programmable Timer AUTOMATIC JANITOR Side Mount Retrofit Conversion Kit for Exposed Urinal Flushometers.

FLUSH CYCLE Model HSM-801-RAJ (Flush cycle is detemined by flushometer being used)

FEATURES - Patented Gear Motor Drive - Converts Existing Urinal into HEU (High Efficiency Urinal) - Provides Significant Water Savings - Keeps Cleaning Pipes and Porcelain When Facility is Closed - Helps to Carry Liquid Waste Required Distance - Easy Programming and Installation - Programmable Settings Allow Flushing Once Every 1, 2, 3, 4, 6, 12, or 24 Hours For Ultimate Water Savings - Works in Conjunction With a Urinal Deodorizer/Screen - Vandal and Water Resistant Design - Chrome Plated All Metal Housing - Quiet Operation - Manual Flush Override Option Using Special Key *Mechanical Override Works When Batteries are Drained - Operates on (4) “C” Alkaline Batteries (Included) - Battery Life - 3+ Years - Beeping “Low Battery” Indicator - Easy Battery Replacement - No Water Shut Off Necessary - Installation Tools Included - No External Volume Adjustment for Water Conservation

A D A C om plia nt

W a rra nty

5 Years

The Automatic Janitor is a fully programmable automatic flush control device for urinals. The Automatic Janitor converts most urinals into water efficient fixtures by controlling the amount of daily flushes. The flush intervals can be programmed to flush once every 1, 2, 3, 4, 6, 12, or 24 hours. The Automatic Janitor was designed to be used in conjunction with a urinal deodorizer/screen to provide for ultimate water efficiency while eliminating odors.

The AUTOMATIC JANITOR Advantage

TECHNICAL DOWNLOADS

Specifications - HSM-801-RAJ

Manuals - HSM-801AJ Install. & Operation - HSM-801AJ Troubleshooting - HSM-801AJ Parts Diagram

Related Links - E-Catalog - Price List - Cross Reference Chart - Warranty Information

Technology - HSM-801 Advantages - Motor vs. Solenoid Technology

Retrofit Options Standard Automatic Janitor Side Mount can be used on AMTC flushometers as well as various flushometer models manufactured by Sloan ® , Zurn ® , and Helvex ® . - Model HSM-801-RAJ-AS (Includes Adapter for American Standard Piston Flushometer) - Model HSM-801-RAJ-SG (Includes Adapter for Sloan Gem Piston Flushometer)
