AUU-1018-14

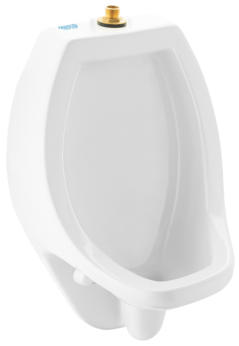

ULTRA HIGH EFFICIENCY QUARTER STALL TOP SPUD WASHOUT URINAL
DESCRIPTION
Ultra High Efficiency Quarter Stall Top Spud Washout Urinal
MODELS AVAILABLE (FLUSH CYCLES)
- 0.125 gpf to 1.0 gpf / 0.5 Lpf to 3.8 Lpf
- Flush volume is determined by flushometer used with urinal
FEATURES
- Complies with ADA Accessible Standards
- White Color
- Wall Hung Vitreous China
- Washout Flushing Action
- Elongated Rim
- Integral Flushing Rim
- Integral Trap
- 3/4” (19mm) I.P.S. Top Spud Inlet (Included)
- 2” (50mm) NPT Outlet Flange (Included)
- 100% Factory Tested
- Hanging Bracket (1 Included)
- Flushometer Not Included
CODE COMPLIANCE (LISTED BY ICC-ES)
- ASME A112.19.2
- CSA B45.1-13
ADA- With installation consideration for “Section 605, Urinals” of the ADA 2010 Standard.
- ICC/ANSI A117.1
- EPA WaterSense
W
a
rra
nty
1 Year
TECHNICAL DOWNLOADS
Specifications
- AUU-1018-14
Technology
PLUMBING SYSTEM REQUIREMENTS
- Minimum Flowing Pressure: 25 PSI
- Maximum Static Pressure: 80 PSI
- Minimum Flow Rate: 25 GPM
A
D
A
C
om
plia
nt
