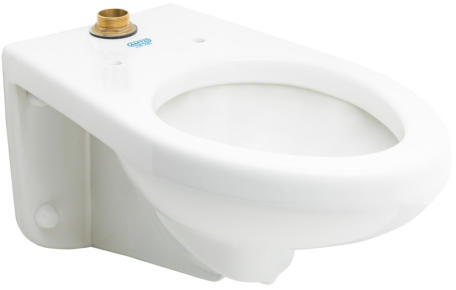

AUT-1012W WALL HUNG ADA HIGH EFFICIENCY FLUSH VALVE BOWL
DESCRIPTION Wall Hung High Efficiency Flush Valve Bowl
MODELS AVAILABLE (FLUSH CYCLES) - 1.1 gpf to 1.6 gpf / 4.2 Lpf to 6.0 Lpf - Flush volume is determined by flushometer used with bowl
FEATURES - Complies with ADA Accessible Standards - White Color - Vitreous China - Wall Hung Water Closet Bowl - Elongated Rim - 10” (254mm) Rough-In - 1-1/2” (38mm) I.P.S. Top Spud Inlet - 2” (50mm) Fully Glazed Trapway - 7-1/2” (190mm) x 8-12” (216mm) Water Surface Area - Direct Feed Jet - 100% Factory Tested - Toilet Seat Not Included - Flushometer Not Included
CODE COMPLIANCE (LISTED BY ICC-ES) - ASME A112.19.2-2013 - CSA B45.1-13 - EPA WaterSense
W a rra nty
1 Year
TECHNICAL DOWNLOADS
Specifications - AUT-1012W
Technology
PLUMBING SYSTEM REQUIREMENTS - Minimum Flowing Pressure: 25 PSI - Maximum Static Pressure: 80 PSI - Minimum Flow Rate: 25 GPM
A D A C om plia nt
