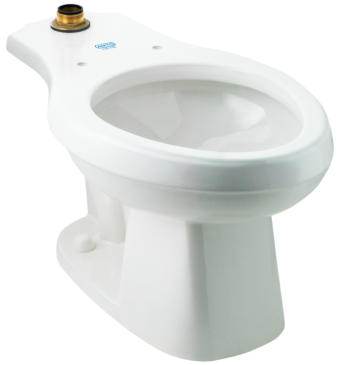

AUT-1012 FLOOR MOUNT HIGH EFFICIENCY FLUSH VALVE BOWL
DESCRIPTION Floor Mount High Efficiency Flush Valve Bowl
MODELS AVAILABLE (FLUSH CYCLES) - 1.1 gpf to 1.6 gpf / 4.2 Lpf to 6.0 Lpf - Flush volume is determined by flushometer used with bowl
FEATURES - White Color - Vitreous China - Floor Mount Water Closet Bowl - Elongated Rim - 10” (254mm) Rough-In - 1-1/2” (38mm) I.P.S. Top Spud Inlet - 2” (50mm) Fully Glazed Trapway - 11” (279mm) x 13” (330mm) Water Surface Area - Direct Feed Jet - 100% Factory Tested - Toilet Seat Not Included - Flushometer Not Included
CODE COMPLIANCE (LISTED BY ICC-ES) - ASME A112.19.2-2013 - CSA B45.1-13 - EPA WaterSense
W a rra nty
1 Year
TECHNICAL DOWNLOADS
Specifications - AUT-1012
Technology
PLUMBING SYSTEM REQUIREMENTS - Minimum Flowing Pressure: 25 PSI - Maximum Static Pressure: 80 PSI - Minimum Flow Rate: 25 GPM
