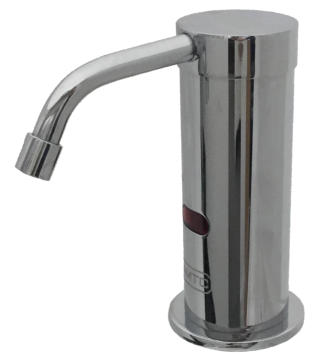

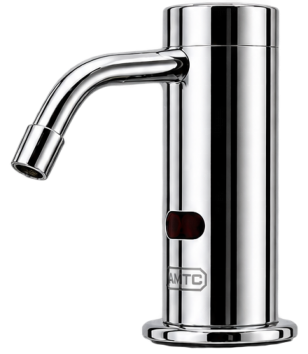

ASD-700/ASD-700EL HY-GENIE AUTOMATIC FOAM HAND SANITIZER DISPENSER SYSTEM
DESCRIPTION Sensor Operated, Gear Motor Driven, Chrome Plated Polished Brass Counter Mount Automatic Foam Hand Sanitizer Dispenser System
FEATURES - Chrome Plated Polished Brass Spout (Standard) - Gear Motor Drive - Hands Free Infrared Sensor Activation - Easy Installation - Powered by Four (4) Alkaline D-Cell Batteries (Not Included) - Battery Life : 90,000 Cycles or 2 Years - Optional Plug-in 6 Volt AC Power Adapter (Not Included) - Universal Refillable Foam Hand Sanitizer Container (800ml/27Fl. Oz.) - Dispenses 0.8ml of Foam Hand Sanitizer Per Dose - 1,000 Hand Dispenses per 800ml Bottle - Mounts Through 1” (25.4mm) Diameter Hole in Lavatory or Countertop - Self Adjusting Sensor - Activation Indicator: BLUE LED on Sensor - Low Battery Indicator: Flashing BLUE LED on Sensor - Low Soap Liquid Indicator: Flashing RED LED on Sensor - Reset Button Automatically Primes New Sanitizer and Resets RED LED - ADA Compliant - Warranty: 3 Years (Limited)
TECHNICAL DOWNLOADS
The ASD-700 Advantage The ASD-700 automatic foam hand sanitizer dispenser system operates using a gear motor drive mechanism. The spout is built of high quality solid polished brass. The design of the control unit allows for easy installation and conceals all mechanical and electrical components within dispensing head. A universal foam hand sanitizer container makes the ASD-700 automatic foam hand sanitizer dispenser system ideal and efficient.
- AD05 Plug-in 6-Volt AC Power Adapter - AD05-2 Plug-in 6-Volt AC Power Adapter w/Extension
ACCESSORIES
Warranty 3 Years
ADA Compliant
ASD-700 - 4” (100mm) Spout Length ASD-700EL - 6” (150mm) Spout Length
