AMTC - AEFC101814U05 (0.5 gpf/1.9 Lpf) Concealed Hard Wired Automatic HEU Quarter Stall Urinal Flush Valve System

AEFC101814U05 (0.5 gpf/1.9 Lpf) CONCEALED HARDWIRED AUTOMATIC HEU QUARTER STALL URINAL FLUSH VALVE SYSTEM

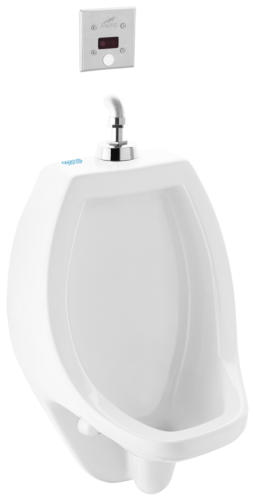

DESCRIPTION Hardwired, Sensor Operated HYBRIDFLUSH ® Complete Ultra HEU System with Concealed Automatic Urinal Flushometer and Vitreous China Fixture.

FLUSH CYCLE Model AEFC101814U05 (0.5 gpf/1.9 Lpf) High Efficiency

FLUSHOMETER SPECIFICATION (AEF-801-CCU-05) - Patented BRV ® and Gear Motor Drive - Wall Mount Plate with Sensor - Hands Free Infrared Sensor Activation - Vandal and Water Resistant Design - Chrome Plated All Metal Housing - Quiet Operation - Electronic Flush Button - Operates on 6-Volt DC Power (Transformer Sold Separately) - Adjustable Sensor Distance - Optional Water Saver Mode - Optional Three (3) Second Flush Delay Mode - Optional 24-Hour Flush Mode - Uses Proprietary Silicone Diaphragm with Filtered Bypass - 3/4” I.P.S. Angle Stop - Adjustable Tailpiece - High Back Pressure Vacuum Breaker with Single Piece Hex Coupling Nut - Spud Coupling and Flange for 3/4” Top Spud - Sweat Solder Kit and Wall Flange with Set Screw - High Efficiency For Water Conservation

CODE COMPLIANCE (LISTED BY IAPMO) - ASSE 1037-2015 - ASME A112.1035-2015 - CSA B125.37-15

W a rra nty

5 Years

L iste d

By

I APM O

TECHNICAL DOWNLOADS

Specifications -AEFC101814U05 - AMTCTRANS6VDC

Manuals - AEF-801 Installation & Operation - AEF-801 Troubleshooting - AEF-801 Parts Diagram - MF-700 Installation & Operation - MF-700 Troubleshooting - MF-700 Parts Diagram - AUU-101814 Installation & Operation

Technology - Micro-Cam Motor Technology - Silicone Diaphragm Technology - Motor vs. Solenoid Technology

FIXTURE SPECIFICATION (AUU-1018-14) - Complies with ADA Accessible Standards - White Color - Wall Hung Vitreous China - Washout Flushing Action - Elongated Rim - Integral Flushing Rim - Integral Trap - 3/4” (19mm) I.P.S. Top Spud Inlet (Included) - 2” (50mm) NPT Outlet Flange (Included) - 100% Factory Tested - Hanging Bracket (1 included)
