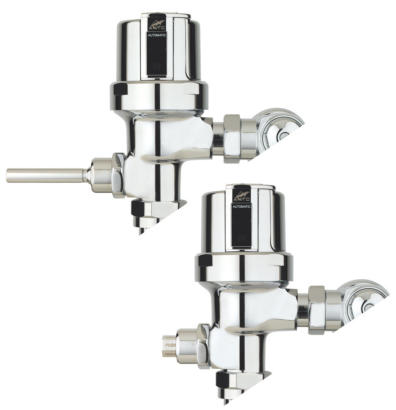

AEF-801-RT HYBRIDFLUSH ® TOP MOUNT AUTOMATIC RETROFIT FOR WATER CLOSET FLUSHOMETER
DESCRIPTION Battery Powered, Sensor Operated HYBRIDFLUSH ® Top Mount Retrofit Conversion Kit for Exposed Water Closet (Toilet) Flushometers
MODELS AVAILABLE (FLUSH CYCLES) Model AEF-801-RT-11 (1.1 gpf/4.2 Lpf) High Efficiency Model AEF-801-RT-12 (1.28 gpf/4.8 Lpf) High Efficiency Model AEF-801-RT-16 (1.6 gpf/6.0 Lpf) Low Consumption Model AEF-801-RT-35 (3.5 gpf/13.2 Lpf)
FEATURES - Patented BRV ® and Gear Motor Drive - Hands Free Infrared Sensor Activation - Vandal and Water Resistant Design - Chrome Plated All Metal Housing - Quiet Operation - True Mechanical Flush Button or Handle (Side) *Mechanical Button/Handle Works When Batteries are Drained - Operates on (4) “AA” Alkaline Batteries (Included) - Battery Life - 3+ Years - “Low Battery” Blinking LED Indicator - Easy Battery Replacement-No Water Shut Off Necessary - Adjustable Sensor Angle - Adjustable Sensor Distance - Optional Three (3) Second Flush Delay Mode - Optional 24-Hour Flush Mode - Uses Proprietary Silicone Diaphragm with Filtered Bypass
A D A C om plia nt
W a rra nty
5 Years
The HYBRIDFLUSH ® is a revolutionary full-featured automatic/manual flushometer. The HYBRIDFLUSH ® incorporates a unique patented mechanism that allows for automatic/manual operation for unsurpassed reliability. The patented HYBRIDFLUSH ® design allows for a push button to be used as an alternate flush option that is independent of the battery power. The HYBRIDFLUSH ® by Advanced Modern Technologies Corporation is the most efficient, economical, and complete automatic flush valve system on the market.
The HYBRIDFLUSH ® Advantage
RETROFIT OPTIONS - S Retrofit for Sloan ® Valve Bodies - Z Retrofit for Zurn ® Valve Bodies
*AEF-801-RT units DO NOT include a Valve Body, Supply Stop or Vacuum Breaker.
TECHNICAL DOWNLOADS
Specifications - AEF-801-RT Accessories - PB-C
