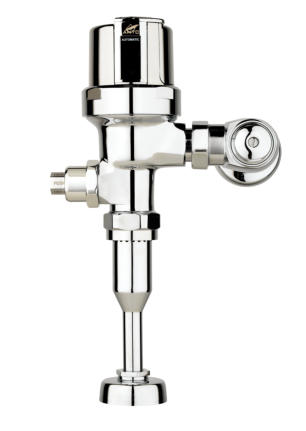

AEF-801-CU-05 (0.5 gpf/1.9 Lpf) HYBRIDFLUSH ® TOP MOUNT AUTOMATIC URINAL FLUSHOMETER
DESCRIPTION Battery Powered, Sensor Operated HYBRIDFLUSH ® Top Mount Exposed Urinal Flushometer for Wall Hung Top Spud Bowls.
FLUSH CYCLE Model AEF-801-CU-05 (0.5 gpf/1.9 Lpf) High Efficiency
FEATURES - Patented BRV® and Gear Motor Drive - Hands Free Infrared Sensor Activation - Vandal and Water Resistant Design - Chrome Plated All Metal Housing - Quiet Operation - True Mechanical Flush Button (Side) *Mechanical Button Works When Batteries are Drained - Operates on (4) “AA” Alkaline Batteries (Included) - Battery Life - 3+ Years - “Low Battery” Blinking LED Indicator - Easy Battery Replacement-No Water Shut Off Necessary - Adjustable Sensor Angle - Adjustable Sensor Distance - Optional Water Saver Mode - Optional Three (3) Second Flush Delay Mode - Optional 24-Hour Flush Mode - Uses Proprietary Silicone Diaphragm with Filtered Bypass - 3/4” I.P.S. Angle Stop - Adjustable Tailpiece - High Back Pressure Vacuum Breaker with Single Piece Hex Coupling Nut - Spud Coupling and Flange for 3/4” Top Spud - Sweat Solder Kit and Wall Flange with Set Screw - High Efficiency For Water Conservation
CODE COMPLIANCE (LISTED BY IAPMO) - ASSE 1037-2015 - ASME A112.1035-2015 - CSA B125.37-15 - EPA WaterSense
ADA Compliant Warranty  5 Years Listed By IAPMO
The HYBRIDFLUSH ® is a revolutionary full-featured automatic/manual flushometer. The HYBRIDFLUSH ® incorporates a unique patented mechanism that allows for automatic/manual operation for unsurpassed reliability. The patented HYBRIDFLUSH ® design allows for a push button to be used as an alternate flush option that is independent of the battery power. The HYBRIDFLUSH ® by Advanced Modern Technologies Corporation is the most efficient, economical, and complete automatic flush valve system on the market.
The HYBRIDFLUSH ® Advantage
TECHNICAL DOWNLOADS
Specifications - AEF-801-CU-05
