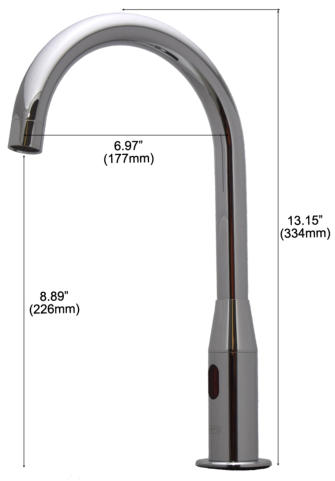

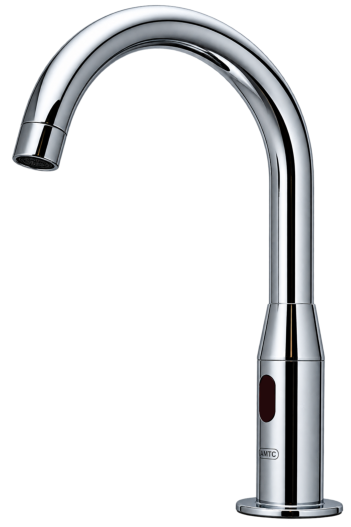

AEF-322 HYBRIDFLO ® AUTOMATIC FAUCET SYSTEM

DESCRIPTION Sensor Operated, Gear Motor Driven, Polished Surgical Grade Stainless Steel Medium Gooseneck Automatic Faucet System for Tempered or Hot/Cold Water Operation.

Flow Rates - 0.35 gpm/1.3 Lpm Spray Head (Cal Green Compliant) - 0.5 gpm/1.9 Lpm Spray Head - 1.5 gpm/5.7 Lpm Laminar Flow Careguard ® Spray Head

FEATURES - Polished Surgical Grade Stainless Steel Spout (Standard) **CONSULT FACTORY FOR SPECIAL FINISHES** - Less Than 0.25% Lead Content by Weighted Average - Patented BRV ® and Gear Motor Drive - Hands Free Infrared Sensor Activation - Powered by Four (4) C-Cell Batteries (Included) - Easy Battery Replacement - No Water Shut Oﬀ Necessary - Removable Filtering System (Easily Cleaned) - 1-Hole Center-set Mounting - 3-Hole 8 Center Set Mounting Using Cover Plate - 1 Second Shut Oﬀ Delay - Adjustable Digital Sensing Range: 2”(50mm)- 12”(300mm) - Automatic Water Flow Shut-Oﬀ: 10 Seconds - Operating Water Pressure: 10-125 PSI - Easy Installation

CODE COMPLIANCE (LISTED BY IAPMO) - Safe Water Drinking Act - ASME A112.18.1-2012 - CSA B125.1-12

TECHNICAL DOWNLOADS

Specifications - AEF-322 - AEF-322HF Accessories - CP4 - CP8/CP8-1 - HC - HG01 - AD01 - AD01-3 - MV - TMV

Manuals - AEF-300 Series Install. & Operation - AEF-300 Sensor Range Adjustment - AEF-300 Series Troubleshooting - AEF-300 Series Parts Diagram

Technology - Micro-Cam Motor Technology - Flo Pin Technology - Motor vs. Solenoid Technology

ACCESSORIES COVER PLATES - CP4 Cover Plate for 4” Center Set (6.25” Length) - CP8 Cover Plate for 8” Center Set (10.25” Length) - CP8-1 Cover Plate for 4” Center Set (12.25” Length) - HC Hole Covers (Set of 2) ALTERNATE POWER OPTIONS - HG01 Plug-in Hydro-Power Electric Generator - AD01 Plug-in 6-Volt AC Power Adapter - AD01-3 Plug-in 6-Volt AC Power Adapter with extensions for 3 units TEMPERATURE MIXING VALVES - MV Mechanical Mixing Valve - TMV Thermostatic Mixing Valve (ASSE 1070)

AMTC’s sensor faucets are engineered with cutting-edge technology and are made of high-grade, low lead compliant solid brass, rewarding you with the rarest of experiences in beauty, performance, and reliability. AMTC’s sensor faucets incorporate patented Ball Relief Valve (BRV ® ) technology with a state of the art high quality motor drive mechanism. By using a motor drive mechanism instead of a magnetic solenoid, AMTC’s sensor faucets achieve a level of reliability rarely experienced with other sensor faucet systems.

Technologically Advanced Sensor Faucet Lines

HYBRIDFLO ® UNIQUELY RELIABLE

The HYBRIDFLO® design includes a water resistant control box that allows for easy installation and conceals all mechanical and electrical components. An easy to clean filter along with AMTC's proprietary motor drive mechanism allow for easy maintenance, long life, and ultimate performance. The unique design of the HYBRIDFLO® sensor faucet system allows for the use of various power options including battery power, electrical power (with battery back-up), or an environmentally friendly hydro-generator (with battery back-up). The HYBRIDFLO® sensor faucet system is available in various water flow rates and is ideal for all public facilities

HEALTHFLO ® FOR ADDED PROTECTION The AEF-322HF HEALTHFLO® includes all of the advantages of the HYBRIDFLO ® while adding a safer and more hygienic hand washing system for healthcare facilities by using bacterial growth limiting components (BGLC™). The patented motor drive mechanism eliminates magnetic solenoids and porous rubber or vinyl diaphragms which can harbor biofilm growth. The water velocity through the HEALTHFLO ® sensor faucet system is increased to flush it clean after every use, and the triggering assembly cleans itself of debris that would ordinarily cause other mechanisms to weep. The system also eliminates rubber-orifice flow controls that can also harbor bacteria, and it is designed to flow at its specified flow rate regardless of variations in water pressure, without flow controls or outlet devices of any kind. The HEALTHFLO ® sensor faucet system is available in 1.5gpm and 2.2gpm water flow rates and is ideal for healthcare facilities.
