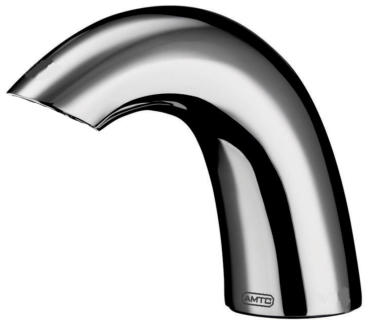

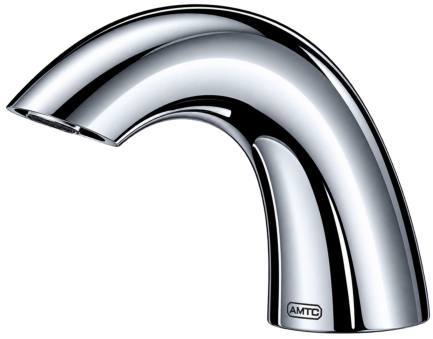

DESCRIPTIONSensor Operated, Gear Motor Driven, Chrome Plated BrassSingle Hole Automatic Faucet System for Tempered or Hot/ColdWater Operation.
Flow Rates- 0.35 gpm/1.3 Lpm Spray Head (CalGreenCompliant)- 0.5 gpm/1.9 Lpm Spray Head
FEATURES- Chrome Plated Solid Brass Spout (Standard)**CONSULT FACTORY FOR SPECIAL FINISHES**- Less Than 0.25% Lead Content by Weighted Average- Patented BRV® and Gear Motor Drive- Hands Free Infrared Sensor Activation- Powered by Four (4) C-Cell Batteries (Included)- Easy Battery Replacement - No Water Shut Oﬀ Necessary- Removable Filtering System (Easily Cleaned)- 1-Hole Center-set Mounting- 1 Second Shut Oﬀ Delay- Self-Adjusting Sensor Range- Automatic Water Flow Shut-Oﬀ: 10 Seconds- Operating Water Pressure: 10-125 PSI- Easy Installation
CODE COMPLIANCE (LISTED BY IAPMO)- Safe Water Drinking Act- ASME A112.18.1-2012- CSA B125.1-12
ACCESSORIES COVER PLATES -CP4 Cover Plate for 4” Center Set (6.25” Length) - CP8 Cover Plate for 8” Center Set (10.25” Length) - CP8-1 Cover Plate for 4” Center Set (12.25” Length) - HC Hole Covers (Set of 2)ALTERNATE POWER OPTIONS- HG01 Plug-in Hydro-Power Electric Generator- AD01 Plug-in 6-Volt AC Power Adapter- AD01-3 Plug-in 6-Volt AC Power Adapter with extensions for 3 unitsTEMPERATURE MIXING VALVES- MV Mechanical Mixing Valve- TMV Thermostatic Mixing Valve (ASSE 1070)
AMTC’s sensor faucets are engineered with cutting-edge technology and are made ofhigh-grade, low lead compliant solid brass, rewarding you with the rarest of experiencesin beauty, performance, and reliability. AMTC’s sensor faucets incorporate patented BallRelief Valve (BRV®) technology with a state of the art high quality motor drive mechanism.By using a motor drive mechanism instead of a magnetic solenoid, AMTC’s sensor faucetsachieve a level of reliability rarely experienced with other sensor faucet systems.
Technologically Advanced Sensor Faucet Lines
The HYBRIDFLO® design includes a water resistant control box that allows for easyinstallation and conceals all mechanical and electrical components. An easy to clean filteralong with AMTC's proprietary motor drive mechanism allow for easy maintenance, longlife, and ultimate performance. The unique design of the HYBRIDFLO® sensor faucetsystem allows for the use of various power options including battery power, electricalpower (with battery back-up), or an environmentally friendly hydro-generator (withbattery back-up). The HYBRIDFLO® sensor faucet system is available in various waterflow rates and is ideal for all public facilities
