AEF-305T
HYBRIDFLO
®

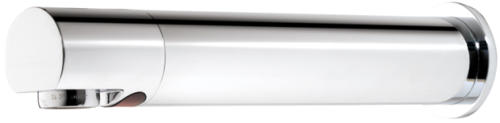

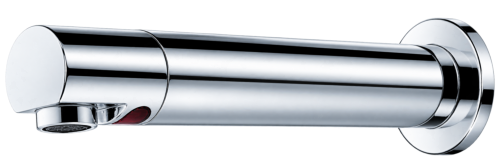

WALL MOUNT AUTOMATIC FAUCET SYSTEM
DESCRIPTION
Sensor Operated, Gear Motor Driven, Chrome Plated Brass
Wall Mount Automatic Faucet System for Tempered or
Hot/Cold Water Operation.
Flow Rates
- 0.35 gpm/1.3 Lpm Spray Head (Cal Green Compliant)
- 0.5 gpm/1.9 Lpm Spray Head
FEATURES
- Chrome Plated Solid Brass Spout (Standard)
**CONSULT FACTORY FOR SPECIAL FINISHES**
- Less Than 0.25% Lead Content by Weighted Average
- Patented BRV
®
and Gear Motor Drive
- Hands Free Infrared Sensor Activation
- Powered by Four (4) C-Cell Batteries (Included)
- Easy Battery Replacement - No Water Shut Off Necessary
- Removable Filtering System (Easily Cleaned)
- 1-Hole Center-set Mounting
- 1 Second Shut Off Delay
- Self-Adjusting Sensor Range
- Automatic Water Flow Shut-Off: 10 Seconds
- Operating Water Pressure: 10-125 PSI
- Easy Installation
CODE COMPLIANCE (LISTED BY IAPMO)
- Safe Water Drinking Act
- ASME A112.18.1-2012
- CSA B125.1-12
TECHNICAL DOWNLOADS
ACCESSORIES
ALTERNATE POWER OPTIONS
- HG01 Plug-in Hydro-Power Electric Generator
- AD01 Plug-in 6-Volt AC Power Adapter
- AD01-3 Plug-in 6-Volt AC Power Adapter with
extensions for 3 units
TEMPERATURE MIXING VALVES
- MV Mechanical Mixing Valve
- TMV Thermostatic Mixing Valve (ASSE 1070)
AMTC’s sensor faucets are engineered with cutting-edge technology and are made of
high-grade, low lead compliant solid brass, rewarding you with the rarest of experiences
in beauty, performance, and reliability. AMTC’s sensor faucets incorporate patented Ball
Relief Valve (BRV
®
) technology with a state of the art high quality motor drive mechanism.
By using a motor drive mechanism instead of a magnetic solenoid, AMTC’s sensor faucets
achieve a level of reliability rarely experienced with other sensor faucet systems.
Technologically Advanced Sensor Faucet Lines
HYBRIDFLO
®
UNIQUELY RELIABLE
The HYBRIDFLO® design includes a water resistant control box that allows for easy
installation and conceals all mechanical and electrical components. An easy to clean filter
along with AMTC's proprietary motor drive mechanism allow for easy maintenance, long
life, and ultimate performance. The unique design of the HYBRIDFLO® sensor faucet
system allows for the use of various power options including battery power, electrical
power (with battery back-up), or an environmentally friendly hydro-generator (with
battery back-up). The HYBRIDFLO® sensor faucet system is available in various water
flow rates and is ideal for all public facilities
Warranty
5 Years
ADA Compliant
