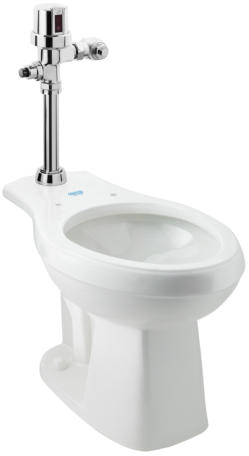

AEF1012AT16 (1.6 gpf/6.0 Lpf) ADA FLOOR MOUNT LC AUTOMATIC FLUSH VALVE SYSTEM
DESCRIPTION Battery Powered, Sensor Operated HYBRIDFLUSH ® Top Mount Complete LC System with Exposed Automatic Water Closet Flushometer and ADA Vitreous China Fixture.
FLUSH CYCLE Model AEF1012AT16 (1.6 gpf/6.0 Lpf) Low Consumption
FLUSHOMETER SPECIFICATION (AEF-801-CT-16) - Patented BRV ® and Gear Motor Drive - Hands Free Infrared Sensor Activation - Vandal and Water Resistant Design - Chrome Plated All Metal Housing - Quiet Operation - True Mechanical Override (Side) *Mechanical Button/Handle Works When Batteries are Drained - Operates on (4) “AA” Alkaline Batteries (Included) - Battery Life - 3+ Years - “Low Battery” Blinking LED Indicator - Easy Battery Replacement-No Water Shut Off Necessary - Adjustable Sensor Angle - Adjustable Sensor Distance - Optional Three (3) Second Flush Delay Mode - Optional 24-Hour Flush Mode - Uses Proprietary Silicone Diaphragm with Filtered Bypass - 1” I.P.S. Angle Stop - Adjustable Tailpiece - High Back Pressure Vacuum Breaker with Single Piece Hex Coupling Nut - Spud Coupling and Flange for 1 ½” Top Spud - Sweat Solder Kit and Wall Flange with Set Screw - Low Consumption For Water Conservation
CODE COMPLIANCE (LISTED BY IAPMO) - ASSE 1037-2015 - ASME A112.1035-2015 - CSA B125.37-15
W a rra nty
5 Years
L iste d
By
I APM O
TECHNICAL DOWNLOADS
Specifications - AEF1012AT16
FIXTURE SPECIFICATION (AUT-1012A) - Complies with ADA Accessible Standards - White Color - Vitreous China - Floor Mount Water Closet Bowl - Elongated Rim - 10” (254mm) Rough-In - 1-1/2” (38mm) I.P.S. Top Spud Inlet - 2” (50mm) Fully Glazed Trapway - 11” (279mm) x 13” (330mm) Water Surface Area - Direct Feed Jet - 100% Factory Tested - Toilet Seat Not Included
CODE COMPLIANCE (LISTED BY ICC-ES) - ASME A112.19.2-2013 - CSA B45.1-13
PLUMBING SYSTEM REQUIREMENTS - Minimum Flowing Pressure: 25 PSI - Maximum Static Pressure: 80 PSI - Minimum Flow Rate: 25 GPM
A D A C om plia nt
