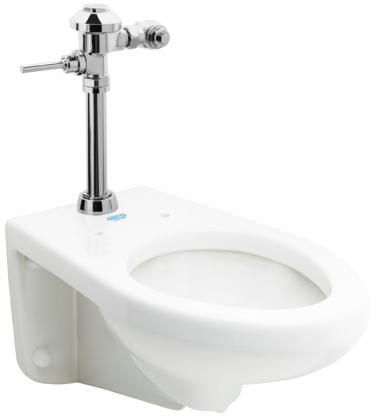

MF1012WT11 (1.1 gpf/4.2 Lpf) ADA WALL HUNG HET MANUAL FLUSH VALVE SYSTEM
DESCRIPTION Complete HET System with Exposed Manual Water Closet Flushometer and ADA Vitreous China Fixture.
FLUSH CYCLE Model MF1012AT11 (1.1 gpf/4.2 Lpf) High Efficiency
FLUSHOMETER SPECIFICATION (MF-700-T11) - Quiet Operation - Uses Proprietary Silicone Diaphragm with Filtered Bypass - ADA Compliant Non-Hold Open Sealed Brass Handle - 1” I.P.S. Angle Stop - Adjustable Tailpiece - High Back Pressure Vacuum Breaker with Single Piece   Hex Coupling Nut - Spud Coupling and Flange for 1 ½” Top Spud - Sweat Solder Kit and Wall Flange with Set Screw - No External Water Volume Adjustment - High Efficiency For Water Conservation
CODE COMPLIANCE (LISTED BY IAPMO) - ASSE 1037-2015 - ASME A112.1035-2015 - CSA B125.37-15
W a rra nty
  5 Years
L iste d
By
I APM O
TECHNICAL DOWNLOADS
Specifications - MF1012WT11
FIXTURE SPECIFICATION (AUT-1012W) - Complies with ADA Accessible Standards - White Color - Vitreous China - Wall Hung Water Closet Bowl - Elongated Rim - 1-1/2” (38mm) I.P.S. Top Spud Inlet - 2” (50mm) Fully Glazed Trapway - 7-1/2” (190mm) x 8-1/2” (216mm) Water Surface Area - Direct Feed Jet - 100% Factory Tested - Toilet Seat Not Included
CODE COMPLIANCE (LISTED BY ICC-ES) - ASME A112.19.2-2013 - CSA B45.1-13 - EPA WaterSense
PLUMBING SYSTEM REQUIREMENTS - Minimum Flowing Pressure: 25 PSI - Maximum Static Pressure: 80 PSI - Minimum Flow Rate: 25 GPM
A D A  C om plia nt
AMTC Advanced Modern Technologies Corporation
