AEFC1012AT16DF (1.6 gpf/6.0 Lpf and 1.1 gpf/4.2 Lpf) DUAL-FLUSH ADA FLOOR MOUNT HET CONCEALED AUTOMATIC FLUSH VALVE SYSTEM

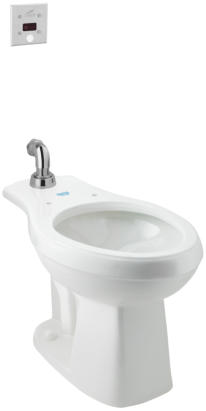

DESCRIPTION Hardwired, Sensor Operated HYBRIDFLUSH ®  Top Mount Complete DUAL-FLUSH System with Concealed Automatic Water Closet Flushometer and ADA Vitreous China Fixture.
FLUSH CYCLES Model AEFC1012AT16DF (1.6 gpf/6.0 Lpf and 1.1 gpf/ 4.2Lpf) High Efficiency
FLUSHOMETER SPECIFICATION (AEF-801DF-CCT-16) - User present for less than 60 seconds initiates a reduced    flush (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste - User present for more than 60 seconds initiates a full flush   (1.6 gpf/6.0 Lpf) eliminating solid and paper waste - Reduced flush consumes up to 30% less water - Patented BRV ®  and Gear Motor Drive - Wall Mounted Plate with Sensor - Hands Free Infrared Sensor Activation - Vandal and Water Resistant Design - Chrome Plated All Metal Housing - Quiet Operation - Electronic Flush Button - Operates on 6-Volt DC Power (Transformer Sold Separately) - Adjustable Sensor Distance - Optional Three (3) Second Flush Delay Mode - Optional 24-Hour Flush Mode - Uses Proprietary Silicone Diaphragm with Filtered Bypass - 1” I.P.S. Angle Stop - Adjustable Tailpiece - High Back Pressure Vacuum Breaker with Single Piece   Hex Coupling Nut - Spud Coupling and Flange for 1 ½” Top Spud - Sweat Solder Kit and Wall Flange with Set Screw - High Efficiency For Water Conservation
CODE COMPLIANCE (LISTED BY IAPMO) - ASSE 1037-2015 - ASME A112.1035-2015 - CSA B125.37-15
W a rra nty
  5 Years
L iste d
By
I APM O
TECHNICAL DOWNLOADS
FIXTURE SPECIFICATION (AUT-1012A) - Complies with ADA Accessible Standards - White Color - Vitreous China - Floor Mount Water Closet Bowl - Elongated Rim - 10” (254mm) Rough-In - 1-1/2” (38mm) I.P.S. Top Spud Inlet - 2” (50mm) Fully Glazed Trapway - 11” (279mm) x 13” (330mm) Water Surface Area - Direct Feed Jet - 100% Factory Tested - Toilet Seat Not Included
CODE COMPLIANCE (LISTED BY ICC-ES) - ASME A112.19.2-2013 - CSA B45.1-13
PLUMBING SYSTEM REQUIREMENTS - Minimum Flowing Pressure: 25 PSI - Maximum Static Pressure: 80 PSI - Minimum Flow Rate: 25 GPM
A D A  C om plia nt
