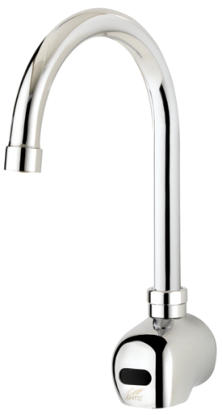

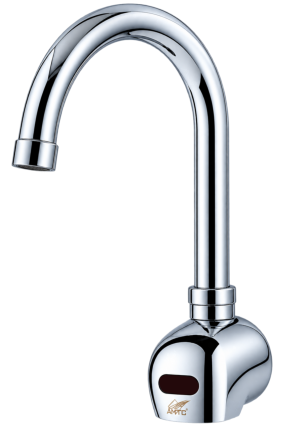

AEF-303 HYBRIDFLO ® WALL MOUNT GOOSENECK AUTOMATIC FAUCET SYSTEM
DESCRIPTION Sensor Operated, Gear Motor Driven, Chrome Plated Brass Wall Mount Gooseneck Automatic Faucet System for Tempered or Hot/Cold Water Operation.
Flow Rates - 0.35 gpm/1.3 Lpm Spray Head (Cal Green Compliant) - 0.5 gpm/1.9 Lpm Spray Head - 1.5 gpm/5.7 Lpm Laminar Flow Careguard ® Spray Head
FEATURES - Chrome Plated Solid Brass Spout (Standard) **CONSULT FACTORY FOR SPECIAL FINISHES** - Less Than 0.25% Lead Content by Weighted Average - Patented BRV ® and Gear Motor Drive - Hands Free Infrared Sensor Activation - Powered by Four (4) C-Cell Batteries (Included) - Easy Battery Replacement - No Water Shut Off Necessary - Removable Filtering System (Easily Cleaned) - 1-Hole Center Back/Wall Mounting - 1 Second Shut Off Delay - Adjustable Digital Sensing Range: 2”(50mm)- 12”(300mm) - Automatic Water Flow Shut-Off: 10 Seconds - Operating Water Pressure: 10-125 PSI - Easy Installation
CODE COMPLIANCE (LISTED BY IAPMO) - Safe Water Drinking Act - ASME A112.18.1-2012 - CSA B125.1-12
ADA Compliant
TECHNICAL DOWNLOADS
Specifications - AEF-303 Accessories - HG01 - AD01 - AD01-3 - MV - TMV
ACCESSORIES ALTERNATE POWER OPTIONS - HG01 Plug-in Hydro-Power Electric Generator - AD01 Plug-in 6-Volt AC Power Adapter - AD01-3 Plug-in 6-Volt AC Power Adapter with extensions for 3 units TEMPERATURE MIXING VALVES - MV Mechanical Mixing Valve - TMV Thermostatic Mixing Valve (ASSE 1070)
AMTC’s sensor faucets are engineered with cutting-edge technology and are made of high-grade, low lead compliant solid brass, rewarding you with the rarest of experiences in beauty, performance, and reliability. AMTC’s sensor faucets incorporate patented Ball Relief Valve (BRV ® ) technology with a state of the art high quality motor drive mechanism. By using a motor drive mechanism instead of a magnetic solenoid, AMTC’s sensor faucets achieve a level of reliability rarely experienced with other sensor faucet systems.
Technologically Advanced Sensor Faucet Lines
HYBRIDFLO ® UNIQUELY RELIABLE
The HYBRIDFLO® design includes a water resistant control box that allows for easy installation and conceals all mechanical and electrical components. An easy to clean filter along with AMTC's proprietary motor drive mechanism allow for easy maintenance, long life, and ultimate performance. The unique design of the HYBRIDFLO® sensor faucet system allows for the use of various power options including battery power, electrical power (with battery back-up), or an environmentally friendly hydro-generator (with battery back-up). The HYBRIDFLO® sensor faucet system is available in various water flow rates and is ideal for all public facilities
Warranty 5 Years
