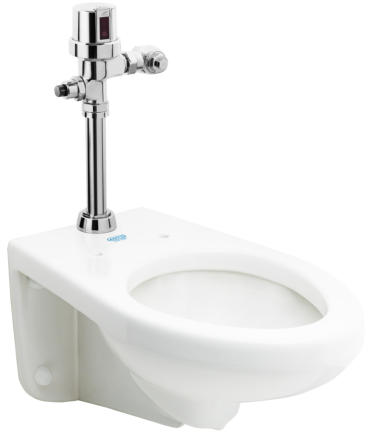

AEF1012WT16DF (1.6 gpf/6.0 Lpf and 1.1 gpf/4.2 Lpf) DUAL-FLUSH ADA WALL HUNG HET AUTOMATIC FLUSH VALVE SYSTEM
DESCRIPTION Battery Powered, Sensor Operated HYBRIDFLUSH ® Top Mount Complete DUAL-FLUSH System with Exposed Automatic Water Closet Flushometer and ADA Wall Hung Vitreous China Fixture.
FLUSH CYCLES Model AEF1012WT16DF (1.6 gpf/6.0 Lpf and 1.1 gpf/ 4.2Lpf) High Efficiency
FLUSHOMETER SPECIFICATION (AEF-801DF-CT-16) - User present for less than 60 seconds initiates a reduced flush (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste - User present for more than 60 seconds initiates a full flush (1.6 gpf/6.0 Lpf) eliminating solid and paper waste - Reduced flush consumes up to 30% less water - Patented BRV ® and Gear Motor Drive - Hands Free Infrared Sensor Activation - Vandal and Water Resistant Design - Chrome Plated All Metal Housing - Quiet Operation - True Mechanical Override (Side) *Mechanical Button/Handle Works When Batteries are Drained - Operates on (4) “AA” Alkaline Batteries (Included) - Battery Life - 3+ Years - “Low Battery” Blinking LED Indicator - Easy Battery Replacement-No Water Shut Off Necessary - Adjustable Sensor Angle - Adjustable Sensor Distance - Optional Three (3) Second Flush Delay Mode - Optional 24-Hour Flush Mode - Uses Proprietary Silicone Diaphragm with Filtered Bypass - 1” I.P.S. Angle Stop - Adjustable Tailpiece - High Back Pressure Vacuum Breaker with Single Piece Hex Coupling Nut - Spud Coupling and Flange for 1 ½” Top Spud - Sweat Solder Kit and Wall Flange with Set Screw - High Efficiency For Water Conservation
CODE COMPLIANCE (LISTED BY IAPMO) - ASSE 1037-2015 - ASME A112.1035-2015 - CSA B125.37-15
W a rra nty
5 Years
L iste d
By
I APM O
TECHNICAL DOWNLOADS
Specifications - AEF1012WT16DF
FIXTURE SPECIFICATION (AUT-1012W) - Complies with ADA Accessible Standards - White Color - Vitreous China - Wall Hung Water Closet Bowl - Elongated Rim - 1-1/2” (38mm) I.P.S. Top Spud Inlet - 2” (50mm) Fully Glazed Trapway - 7-1/2” (190mm) x 8-1/2” (216mm) Water Surface Area - Direct Feed Jet - 100% Factory Tested - Toilet Seat Not Included
CODE COMPLIANCE (LISTED BY ICC-ES) - ASME A112.19.2-2013 - CSA B45.1-13
PLUMBING SYSTEM REQUIREMENTS - Minimum Flowing Pressure: 25 PSI - Maximum Static Pressure: 80 PSI - Minimum Flow Rate: 25 GPM
A D A C om plia nt
